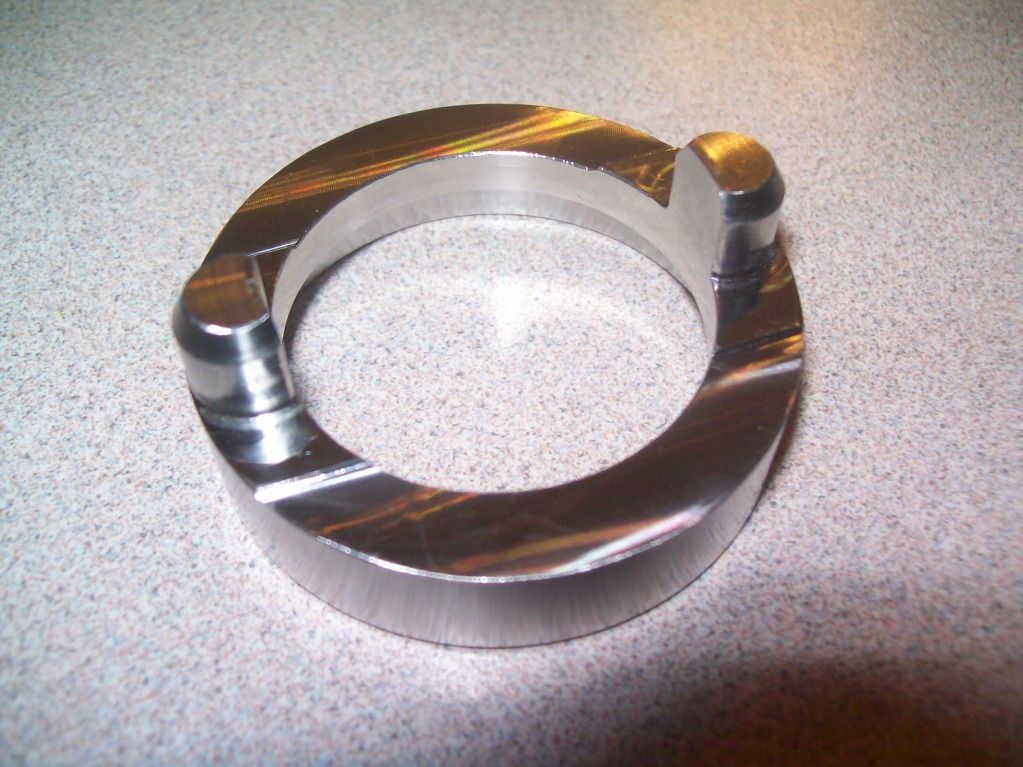

CNC 300 Maraging tab ring before heat treat.

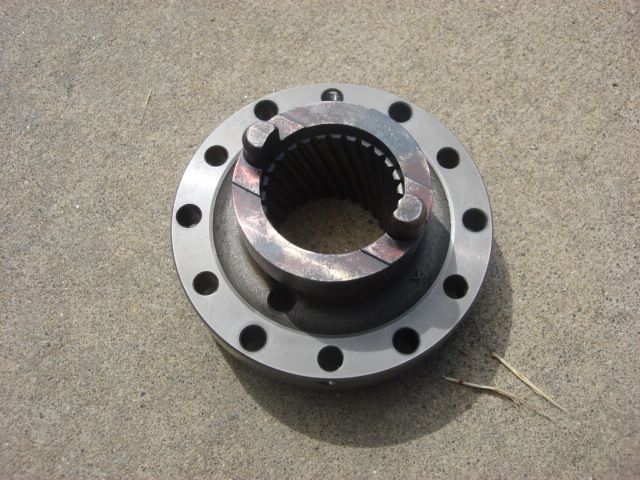

After heat treat and installed on hub. The purple tint is from the heat treat



300 Maraging steel 296,000 psi yeild strength with larger tabs to take up the slack in pump and radius at the bottom of the tab for added strength. CNC cut for tight tolerances.
