Old 02-25-2011, 10:19 AM   #1
njmisso
Registered User

Join Date: Dec 2009
Location: Buffalo NY
Posts: 30
My Ride: 2004 zhp 330i sedan
ccv - crank case valve kit - 330i - m54 engine

So I caught it early but it appears that I need to replace my crank case valve. Common issue for all BMW's with m54 engine..

I looked for parts through my local BMW dealership and they wanted to charge me $350.00 for parts alone and $865 to perform service

I found the complete kit (cold weather) at getbmwparts.com (tischer BMW). Wondering if anyone can verify that I am recieving same kit of parts?! Thanks.

http://www.trademotion.com/shoppingc...D%26subcat5%3D

PS. I already found good DIY forum if I choose to do myself -

http://forum.e46fanatics.com/showthread.php?t=643639
njmisso is offline   Reply With Quote
Ads by Google

Guests, get your FREE E46Fanatics.com membership to remove this ad.
Old 02-25-2011, 10:23 AM   #2
shanneba
Registered User

Join Date: May 2008
Location: Indiana
Posts: 2,091
My Ride: 2003 330Ci
Can't see the parts in your cart with the link, but make sure you also have the new dipstick tube.

SI B 11 08 03 Engine March 2009 Technical Service
E46 (3 Series) rear-wheel drive only

Part Number Description Quantity
11 61 7 534 237 Oil Separator Repair kit 1
11 43 7 565 437 Dip Stick Guide Tube 1
11 15 7 532 629 Hose 1
__________________
Join BMWCCA
Discounts on new and CPO cars.
Most Dealers offer a parts discount, BMP Design 10% off

Last edited by shanneba; 02-25-2011 at 10:26 AM.
shanneba is offline   Reply With Quote
Old 02-25-2011, 10:41 AM   #3
mach.schnell
Registered User

Join Date: Dec 2009
Location: Amish country, PA
Posts: 688
My Ride: 08/2000 330Cic x2
Depends on any additional work you want to do when the engine's apart, like replace the lower air intake boot that tends to crack. BMW has a "kit" of the valve and two hoses that tends to be cheaper than the individual parts (but one vendor had an E46fanatics special that was more expensive than the individual parts).

11 61 7 534 237 Oil Separator Repair kit
11 61 7 504 536 RETURN PIPE
11 7 27 545 323 VACUUM HOSE
11 15 7 532 629 Hose to Guide Tube
11 43 1 740 045 O-ring 19,5X3 for guide tube

11 43 7 565 437 Dip Stick Guide Tube
13 54 1 438 759 Throttle Body Boot

last time I checked bmwmercedesparts.com was the lowest.


(Here's another DIY to check out: http://www.bimmerfest.com/forums/sho...+oil+separator )

Last edited by mach.schnell; 02-25-2011 at 10:50 AM.
mach.schnell is offline   Reply With Quote
Old 02-25-2011, 10:47 AM   #4
Bill W
Registered User

Join Date: May 2008
Location: Charlotte
Posts: 94
My Ride: 330ci
When I replaced mine a couple month ago every hose around it that I had to touch broke. I ended up replacing all the hose and intake boots.
Bill W is offline   Reply With Quote
Old 02-25-2011, 10:50 AM   #5
OrientBlau
Registered User

Join Date: Jul 2010
Location: NYC
Posts: 2,454
My Ride: 2003 330i
How many miles do you have and how do you know you caught it early?


Quote:
Originally Posted by njmisso View Post
So I caught it early but it appears that I need to replace my crank case valve. Common issue for all BMW's with m54 engine..

I looked for parts through my local BMW dealership and they wanted to charge me $350.00 for parts alone and $865 to perform service

I found the complete kit (cold weather) at getbmwparts.com (tischer BMW). Wondering if anyone can verify that I am recieving same kit of parts?! Thanks.

http://www.trademotion.com/shoppingc...D%26subcat5%3D

PS. I already found good DIY forum if I choose to do myself -

http://forum.e46fanatics.com/showthread.php?t=643639
__________________
All truth passes through three stages. First, it is ridiculed. Second, it is violently opposed. Third, it is accepted as being self-evident. - Arthur Schopenhauer
OrientBlau is offline   Reply With Quote
Old 02-25-2011, 10:51 AM   #6
njmisso
Registered User

Join Date: Dec 2009
Location: Buffalo NY
Posts: 30
My Ride: 2004 zhp 330i sedan
Thanks guys..

The kit at Tischer doesn't give the individual part #'s and thats where my concern is coming from. Sorry about the wrong link -

http://www.trademotion.com/partlocat...catalogid=4462

I am repacing my stock intake with BMW performace intake at the same time, so not sure that takes care of the 'lower air intake boot' as well?
njmisso is offline   Reply With Quote
Old 02-25-2011, 10:55 AM   #7
njmisso
Registered User

Join Date: Dec 2009
Location: Buffalo NY
Posts: 30
My Ride: 2004 zhp 330i sedan
I feel like I caught it early because the only indication that something is wrong is some yellowish goo in my oil cap. (rust color is ok)

And I haven't experience any of the other symptoms associated with failing CCV's. Here's a great link for additional info on CCV - http://forums.bimmerforums.com/forum....php?t=1062875
njmisso is offline   Reply With Quote
Old 02-25-2011, 11:24 AM   #8
welcher330xi
Registered User

Join Date: Jun 2010
Location: Wisconsin
Posts: 95
My Ride: 2001 330xi
The test for a failed CCV is taking off the oil fill cap while the engine is running. If you get a lot of vaccum or engine idle stumble the CCV is bad (I think that's the test but I would search). The residue under the cap doesn't necessarily mean a CCV failure but I would go on a long drive to burn off that condensation.
__________________
Quote:
Originally Posted by ODEHBOY View Post
why are u holding ur camera like a douche?
Quote:
Originally Posted by Attaus View Post
Twice as much profit? Yeah, maybe in Canadian dollars.
welcher330xi is offline   Reply With Quote
Old 02-25-2011, 11:31 AM   #9
OrientBlau
Registered User

Join Date: Jul 2010
Location: NYC
Posts: 2,454
My Ride: 2003 330i
Quote:
Originally Posted by welcher330xi View Post
The test for a failed CCV is taking off the oil fill cap while the engine is running. If you get a lot of vaccum or engine idle stumble the CCV is bad (I think that's the test but I would search). The residue under the cap doesn't necessarily mean a CCV failure but I would go on a long drive to burn off that condensation.
Im not entirely sure that this is the definitive test for a bad CCV. I feel as if Ive read elsewhere that this does not always show a bad CCV.

Anyway, Ive done the ziplock test, and mine only sucks it in about 1/2" inch. and have no "yellow mayo" on my oil cap either. There is no smoke coming from the engine or oil in tail pipe.

I just feel that at 57K, I may need to do this soon as preventive maintenance. The last thing I want is to hydrolock the engine.

OP, its also recommended to replace the dipstick tube with the updated part. It is no longer double shafted (whcih is proneto clogging). If you decide to keep your original one, make sure you clean it out well.
__________________
All truth passes through three stages. First, it is ridiculed. Second, it is violently opposed. Third, it is accepted as being self-evident. - Arthur Schopenhauer
OrientBlau is offline   Reply With Quote
Old 02-26-2011, 11:33 AM   #10
mach.schnell
Registered User

Join Date: Dec 2009
Location: Amish country, PA
Posts: 688
My Ride: 08/2000 330Cic x2
Thumbs Up

Quote:
Originally Posted by njmisso View Post
Thanks guys..

The kit at Tischer doesn't give the individual part #'s and thats where my concern is coming from. Sorry about the wrong link -

http://www.trademotion.com/partlocat...catalogid=4462
(NOTE: ALWAYS have your vendor check part numbers against your VIN.)

The description on your link states: Kit includes pressure regulating valve, vent pipe, connecting line, vent hose, vacuum hose, return pipe, and dipstick o-ring. Which for the cold weather kit using their prices should be:

11617533400 pressure regulating valve $55.01
11617533398 vent pipe $22.32
11617533399 connecting line $28.24
11157532629 vent hose $12.83
11727545323 vacuum hose $12.38
11617504536 return pipe $25.78
11431740045 dipstick o-ring $1.48

That's a complete set kit except for 11437565437 Dip Stick Guide Tube $131.85

NOTE: the first three parts '400, '398, '399 are bundled by BMW into a part called - 11617534237 Oil Separator Repair kit. ($93.46)

Kit $145
Individual parts $157.04
BMW kit plus other parts $145.93

But why not email them to get the actual part #'s? And then check against - http://www.realoem.com/bmw/showparts...94&hg=11&fg=15

Also check prices from: www.bmwmercedesparts.com
Quote:
Originally Posted by njmisso View Post
I am repacing my stock intake with BMW performace intake at the same time, so not sure that takes care of the 'lower air intake boot' as well?
As far as I can tell, the BMW performance air intake doesn't come with any air boots.
http://www.realoem.com/bmw/showparts...47&hg=13&fg=95

13541438761 upper boot
13541438759 lower boot
http://www.realoem.com/bmw/showparts...05&hg=13&fg=15


(I'm sure someone will let me know if I'm wrong. ;^)

PS: I've also read where other people fix
13547504729 Throttle Body Gasket
11611437453 IDLE REGULATING VALVE Gromet
while they're at it.

PPS: Just checking, but do you use RealOEM.com ?

Last edited by mach.schnell; 02-28-2011 at 11:33 AM. Reason: changed "package" to "kit"
mach.schnell is offline   Reply With Quote
Old 02-28-2011, 02:54 AM   #11
sellsellsell2000
Registered User

Join Date: Aug 2008
Location: San Francisco, CA
Posts: 547
My Ride: E46 seden
Send a message via AIM to sellsellsell2000
How do I find out if my car have cold package or not.

Please advise.

Thanks.



/// ( @ )( @ )


BMW /// 323i /// Sedan



OEM M-Tech II front & rear bumper /// Cluster Ring /// Grimace Fog Lights /// DEPO corners /// CCFL angel eye

330i Diff /// REMUS Exhaust /// Heat Shield Cold Air Intake





sellsellsell2000 is offline   Reply With Quote
Old 02-28-2011, 07:29 AM   #12
franz
Registered User

Join Date: Aug 2006
Location: RDU, NC
Posts: 2,870
My Ride: 03 330i
You need neither the cold weather parts in SF nor the dipstick tube for an '04 330i. I did mine last year with that exact kit and I would second looking around at a few other parts like intake boots upper and lower but the kit is perfect and the job only took me about 3 hours.
__________________
franz is offline   Reply With Quote
Old 02-28-2011, 08:21 AM   #13
mp333
Registered User

Join Date: Nov 2009
Location: EastCoast
Posts: 312
My Ride: 2003 325XI
Is there a TSB that shows what are the updates on the dipstick and what model it affects.
__________________



E46 Rocks
mp333 is offline   Reply With Quote
Old 02-28-2011, 08:50 AM   #14
shanneba
Registered User

Join Date: May 2008
Location: Indiana
Posts: 2,091
My Ride: 2003 330Ci
Quote:
Originally Posted by mp333 View Post
Is there a TSB that shows what are the updates on the dipstick and what model it affects.
Yes, Highlight and copy the SIB number from my port above, the second link from a Yahoo search has the actual PDF. as March 2009.

The SIB has also been posted here several times.
There are pictures posted somewhere here of the two dipsticks side my side. I found them by searching for sib, 11, 08, 03, dipstick there were like 4 threads returned.
The dipstick photos were in one of the four.
__________________
Join BMWCCA
Discounts on new and CPO cars.
Most Dealers offer a parts discount, BMP Design 10% off

Last edited by shanneba; 02-28-2011 at 08:56 AM.
shanneba is offline   Reply With Quote
Old 02-28-2011, 09:05 AM   #15
ECSTuning
Sponsor

ECSTuning's Avatar

Join Date: Jul 2008
Location: Wadsworth, Ohio
Posts: 5,838
My Ride: BMW

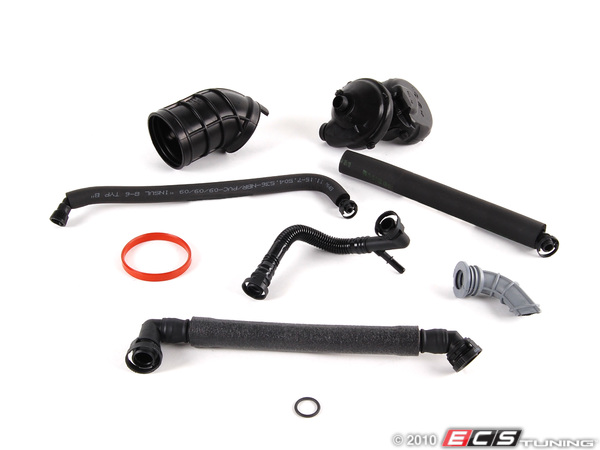

We have complete multi level kits available for a full system maintenance.

Click HERE for more information.


Please let us know if you have any questions! Feel free to shoot me a PM or email.

Best,
Joe
__________________

Have questions? Need answers? Live Chat us! 8:30am to 12:00am Midnight EST
sales@ecstuning.com | customerservice@ecstuning.com
Customer Service Hours: M - F 8:00am - 8:00pm EST | Saturday: 10:00am - 7:00pm EST
Sales Team Hours: M - F 8:00am - 11:00pm EST | Saturday: 10:00am - 7:00pm EST | 800.924.5172
Do you love surveys? Click HERE to take our Customer Satisfaction Survey!
ECSTuning is offline   Reply With Quote
Old 02-28-2011, 09:21 AM   #16
genuity
Registered User

Join Date: Sep 2009
Location: *
Posts: 1,404
My Ride: '1 E46
Quote:
Originally Posted by sellsellsell2000 View Post
How do I find out if my car have cold package or not.
Look at your CCV hoses and see if it has insulation.

Quote:
Originally Posted by mp333 View Post
Is there a TSB that shows what are the updates on the dipstick and what model it affects.
Here is the main difference in the dipstick guide tubes: 11437531258 (old) vs 11437565437 (new). Part number for new tube may vary by model (best consult with SIB), but this is the one for the 330. Price has really dropped for this new guide tube--about a year ago, it was nearly $200. Ask me how I know.

genuity is offline   Reply With Quote
Old 02-28-2011, 09:44 AM   #17
Elwin
Registered User

Join Date: Apr 2009
Location: USA
Posts: 263
My Ride: 330i ZHP
Quote:
Originally Posted by njmisso View Post
So I caught it early but it appears that I need to replace my crank case valve. Common issue for all BMW's with m54 engine..

I looked for parts through my local BMW dealership and they wanted to charge me $350.00 for parts alone and $865 to perform service

I found the complete kit (cold weather) at getbmwparts.com (tischer BMW). Wondering if anyone can verify that I am recieving same kit of parts?! Thanks.

http://www.trademotion.com/shoppingc...D%26subcat5%3D

PS. I already found good DIY forum if I choose to do myself -

http://forum.e46fanatics.com/showthread.php?t=643639
give me last 7 digits of your vin and I will tell you the right parts.
Elwin is offline   Reply With Quote
Old 02-28-2011, 09:57 AM   #18
Elwin
Registered User

Join Date: Apr 2009
Location: USA
Posts: 263
My Ride: 330i ZHP
For M54 330i you need:

http://www.realoem.com/bmw/showparts...94&hg=11&fg=15
01 Pressure regulating valve 1 11617533400 $65.78
02 Vent pipe 1 11617533398 $28.08
03 Connecting line 1 11617533399 $33.87
04 Vent hose 1 11157532629 $15.37
07 Return pipe 1 11617504536 $33.87

http://www.realoem.com/bmw/showparts...05&hg=13&fg=15
06 Tube elbow 1 13541438759 $13.88

http://www.realoem.com/bmw/showparts...01&hg=13&fg=15
02 PROFILE-GASKET D=79,5MM 1 13547504729 $9.02
Elwin is offline   Reply With Quote
Old 02-28-2011, 11:25 AM   #19
mach.schnell
Registered User

Join Date: Dec 2009
Location: Amish country, PA
Posts: 688
My Ride: 08/2000 330Cic x2
Quote:
Originally Posted by sellsellsell2000 View Post
How do I find out if my car have cold package or not.
My apologies. I should have said cold weather kit since the phrase "cold weather package" has to do with other options (such as heated seats and headlight washers).

The cold weather CCV has a foamed rubber jacket wrapped around a standard CCV. That's it. The jacket typically costs $10 more.

The cold weather CCV hoses have rubber insulation on the outside.

All of this is to keep the yellow oil/moisture goo, and the CCV membrane from freezing inside. If you don't live where it is below freezing for a long stretch of days, (maybe three or four?) I wouldn't worry about it.

Maybe an engineer needs to correct me, but on cold days you see water vapor coming out the exhaust just after the car starts up. After the car heats up that goes away. A lot of little trips cause this moisture to collect and this stuff will freeze on cold days. On later model engines, BMW put the CCV inside the valve cover to keep the membrane from freezing and put the oil separator somewhere else.
mach.schnell is offline   Reply With Quote
Old 02-28-2011, 11:26 AM   #20
mach.schnell
Registered User

Join Date: Dec 2009
Location: Amish country, PA
Posts: 688
My Ride: 08/2000 330Cic x2
Quote:
Originally Posted by ECSTuningJoe View Post
We have complete multi level kits available for a full system maintenance.
Ok Joe,

What's that little grey pipe thing in your picture? Cause that don't go on an E46.
mach.schnell is offline   Reply With Quote
Reply

Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes Rate This Thread
Rate This Thread:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Censor is ON





All times are GMT -5. The time now is 02:37 PM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2014, vBulletin Solutions, Inc.
(c) 1999 - 2011 performanceIX Inc - privacy policy - terms of use
